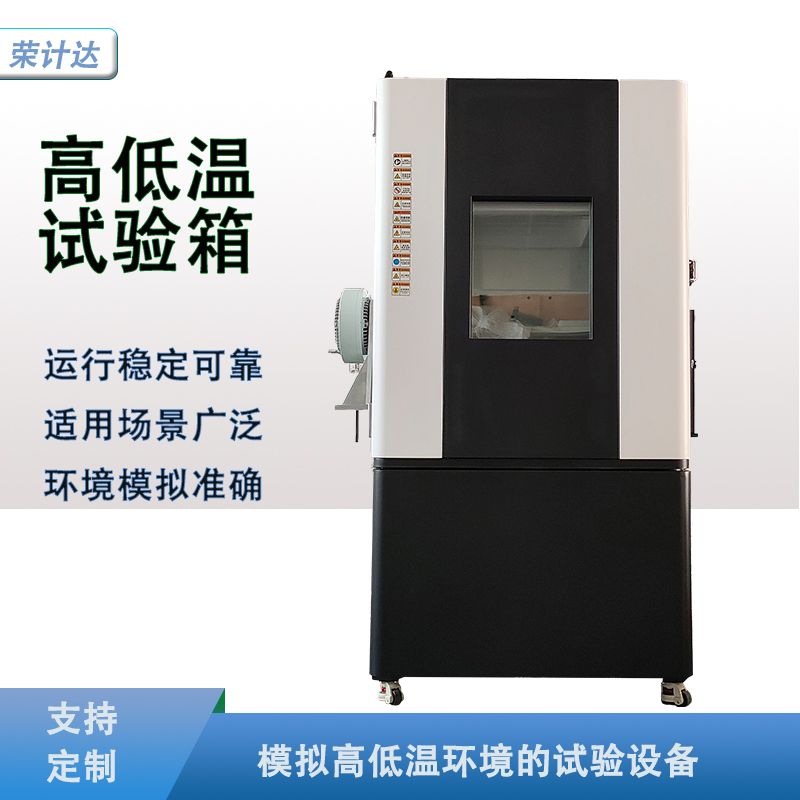

可程式恒温恒湿试验箱KCS-HWHS荣计达仪器
| 产品型号： |
KCS-HWHS |
| 品 牌： |
荣计达仪器 |
|
|
| 所 在 地： |
上海闵行区 |
| 更新日期： |
2026-03-19 |
| | 品牌：荣计达仪器 | | 型号：KCS-HWHS | | 加工定制：是 | |
| | 内箱材质：不锈钢 | | 外箱材质：高硬度冷轧板 | | 温度控制方式：智能控温 | |
| | 温度范围：-70~+150℃ | | 工作室尺寸：1000×1000×1000 mm | | 外形尺寸：1850×1250×1950 mm | |
可程式恒温恒湿试验箱
I. Introduction 简介
The programmable high and low temperature test chamber automatically executes temperature rise, temperature drop, constant temperature, and alternating temperature-humidity programs through a programmable control system. It is widely used in electronics, hardware, plastic, scientific research and other fields to test the performance stability of products under high and low temperature environments.
可程式高低温试验箱通过可编程控制系统，自动执行升温、降温、恒温、交变温湿度程序，广泛应用于电子、五金、塑胶、科研等领域，用于检测产品在高低温环境下的性能稳定性，保障产品在极端环境中的可靠性。
II. 可程式恒温恒湿试验箱Technical Parameters 技术参数
| Parameter Item 参数项 |
General Range 常规范围 |
Remarks 备注 |
| Temperature Range 温度范围 |
-70℃～150℃ (Optional: starting from -40℃/-20℃/0℃) -70℃~150℃（可选 -40℃/-20℃/0℃起） |
Accordingtomachineconfiguration 按机型配置 |
| Humidity Range 湿度范围 |
20% RH～98% RH (10℃～85℃ range) 20% RH～98% RH（10℃～85℃区间） |
Humid heat type configuration 湿热型配置 |
| TemperatureFluctuation 温度波动度 |
±0.5℃ |
Constant temperature state 恒温状态 |
| Temperature Uniformity 温度均匀度 |
≤±2℃ |
No-load condition 空载条件 |
| Humidity Fluctuation 湿度波动度 |
±2%RH～±3%RH |
Humid heat type 湿热型 |
| Heating Rate 升温速率 |
3～5℃/min (General) 3～5℃/min（常规） |
Customizable 可定制 |
| Cooling Rate 降温速率 |
1～3℃/min (General) 1～3℃/min（常规） |
Rapid temperature change model up to 5~10℃/min 快温变机型可达5~10℃/min |
| Inner Chamber Volume 内箱容积 |
80L～1000L (Customizable) 80L～1000L（可定制） |
Common models: 80/150/225/408/800L 常见80/150/225/408/800L |
| Control System 控制系统 |
Touch screen programmable controller 触摸屏可编程控制器 |
Supports multi-segment programs, cycles, data recording 支持多段程序、循环、数据记录 |
| Refrigeration Method 制冷方式 |
Single-stage/cascadecompression refrigeration 单级/复叠式压缩制冷 |
Adoptsenvironmentallyfriendly refrigerant 采用环保冷媒 |
| Safety Protection 安全保护 |
Over-temperature, over-pressure, compressor overload, water shortage, leakage protection, etc. 超温、超压、压缩机过载、缺水、漏电保护等 |
Multiple interlock protection 多重联锁保护 |
III. 可程式恒温恒湿试验箱Features 特点
Programmable Control 可编程控制
Supports storage of multiple groups of programs, each group can set multiple steps, supports cycle, nesting and breakpoint resumption. It can preview the operation curve, automatically record data and export reports, which is convenient for experiment management and data traceability.
支持多组程序存储，每组可设多段步骤，支持循环、嵌套、断点续跑，可预览运行曲线，自动记录数据并导出报表，便于实验管理与数据追溯。
Precise Temperature and Humidity Control 温湿度精准调控
Adopts PID algorithm, combined with high-precision sensors, to achieve stable temperature and humidity control and a uniform environmental field, ensuring the accuracy and repeatability of test results.
采用PID算法，配合高精度传感器，实现稳定的温湿度控制与均匀的环境场，保障试验结果的准确性与重复性。
Structure and Thermal Insulation 结构与保温
The box body adopts polyurethane foam insulation layer, and forced air duct circulation to ensure uniform temperature and humidity inside the chamber. The box door is equipped with an observation window and lighting, which is convenient for observing samples during the test process without affecting the test environment.
箱体采用聚氨酯发泡隔热层，强制风道循环，保障箱内温湿度均匀；箱门配备观察窗与照明，便于试验过程中观测样品，不影响试验环境。
Safety and Reliability 安全可靠
Equipped with multiple safety protection functions, it runs stably, adapts to long-term continuous tests, and effectively protects the test samples, equipment and operators.
具备多重安全保护功能，运行稳定，适配长时间连续试验，有效保护试验样品、设备及操作人员安全。
Easy Operation 操作便捷
The touch screen interface is user-friendly, parameter setting is intuitive and simple, and it supports remote monitoring and data transmission, which improves the efficiency of test operation.
触摸屏界面友好，参数设置直观简便，支持远程监控与数据传输，提升试验操作效率。
